Mil-PIA-Spec - Cotton - MIL-W-5665
PIA-W-5665D, WEBBING, TEXTILE, COTTON WARP
| Our Code | Type | Class | Width/Dia (Inch) | Thick(Inch) | B/S (Min) pound | Elong % (Min) at Break | Pick(Inch) | Weave |
|---|---|---|---|---|---|---|---|---|
| NWFS-PIA-C-9000 | I | 1A, 1B, 2A, 2B & 3 | 9/16 ± 1/16 | 0.040-0.050 | 350 | N/A | 20 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-C-9001 | II | 1A, 1B, 2A, 2B & 3 | 1 ± 1/16 | 0.040-0.050 | 575 | N/A | 20 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-C-9050 | IIa | 1A, 1B, 2A, 2B & 3 | 1 ± 1/16 | 0.040-0.070 | 575 | N/A | 20 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-C-9002 | III | 1A, 1B, 2A, 2B & 3 | 1-1/4 ± 1/16 | 0.040-0.050 | 750 | N/A | 20 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-C-9051 | IIIa | 1A, 1B, 2A, 2B & 3 | 1-1/4 ± 1/16 | 0.040-0.070 | 750 | N/A | 20 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-C-9003 | IV | 1A, 1B, 2A, 2B & 3 | 3 ± 1/8 | 0.050-0.100 | 1900 | N/A | 16 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-C-9004 | V | 1A, 1B, 2A, 2B & 3 | 5 ± 1/8 | 0.050-0.100 | 2750 | N/A | 16 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-C-9005 | VI | 1A, 1B, 2A, 2B & 3 | 1-3/4 ± 1/16 | 0.070-0.090 | 1500 | N/A | 11 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-C-9006 | VII | 1A, 1B, 2A, 2B & 3 | 1-3/4 ± 1/16 | 0.140-0.170 | 2600 | N/A | 24 | Twill |
| NWFS-PIA-C-9007 | VIII | 1A, 1B, 2A, 2B & 3 | 1 3/4 ± 1/16 | 0.070-0.095 | 1200 | N/A | 10 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-C-9008 | IX | 1A, 1B, 2A, 2B & 3 | 3 ± 1/8 | 0.090-0.115 | 4500 | N/A | 12 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-C-9009 | X | 1A, 1B, 2A, 2B & 3 | 13/4 ± 1/16 | 0.125 - 0.170 | 4700 | N/A | 20 | Twill Weave |
| NWFS-PIA-C-9010 | XII | 1A, 1B, 2A, 2B & 3 | 13/4 ± 1/16 | 0.040 - 0.060 | 900 | N/A | 20 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-C-9011 | XIII | 1A, 1B, 2A, 2B & 3 | 1 3/4 ± 1/16 | 0.095-0.130 | 3400 | N/A | 11 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-C-9012 | XV | 1A, 1B, 2A, 2B & 3 | 13/4 ± 1/16 | 0.130 - 0.150 | 4500 | N/A | 40 | Twill Weave |
| NWFS-PIA-C-9013 | XVI | 1A, 1B, 2A, 2B & 3 | 1 3/4 ± 1/16 | 0.090-0.115 | 2700 | N/A | 10 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-C-9014 | XVII | 1A, 1B, 2A, 2B & 3 | 1 ± 1/16 | 0.075 - 0.095 | 900 | N/A | 11 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-C-9015 | XVII | 1A, 1B, 2A, 2B & 3 | 2 1/2 ± 1/16 | 0.050-0.060 | 1250 | N/A | 20 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-C-9016 | XX | 1A, 1B, 2A, 2B & 3 | 5/8 ± 1/16 | 0.075 - 0.095 | 200 | N/A | 19 | Double Plain Weave (1 up, 1 down) |
| NWFS-PIA-C-9017 | XIX | 1A, 1B, 2A, 2B & 3 | 2 ± 1/16 | 0.130 ± 0.010 | 2500 | N/A | 21 | Double Plain |

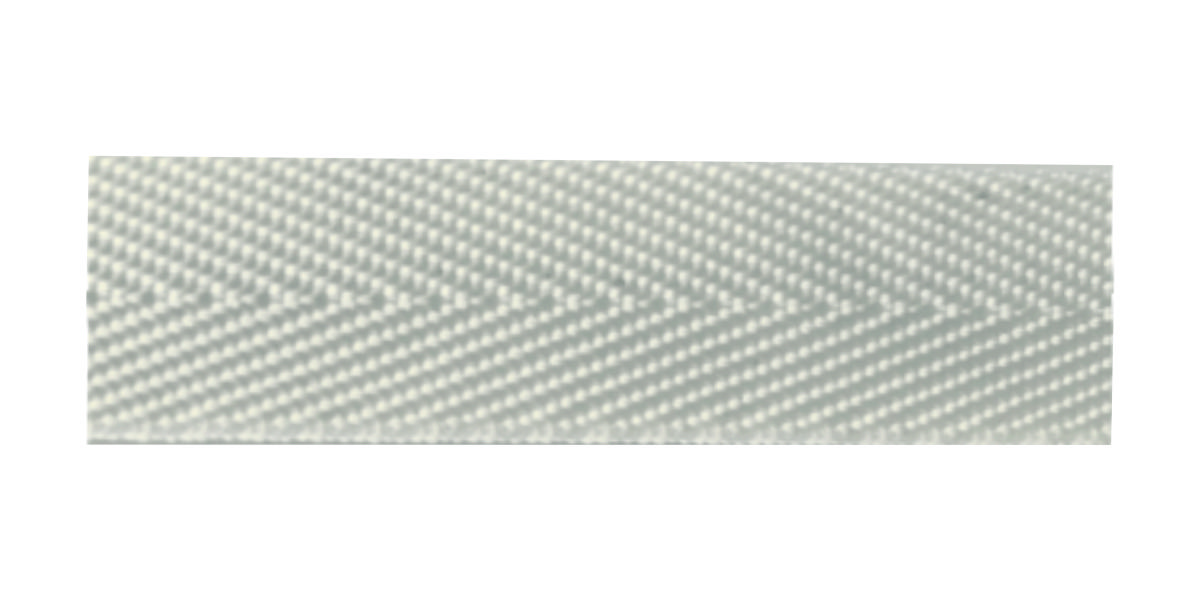

NWFS-PIA-C-9000
Webbing, cotton, 9/16 inch wide
PIA-W-5665 Type I
Herringbone 2x2 Twill Weave
Thickness: 0.045-0.050 inch
Tensile strength: min. 350 lbs
Shade: Natural
$ 0.252 per yard
Get this deal

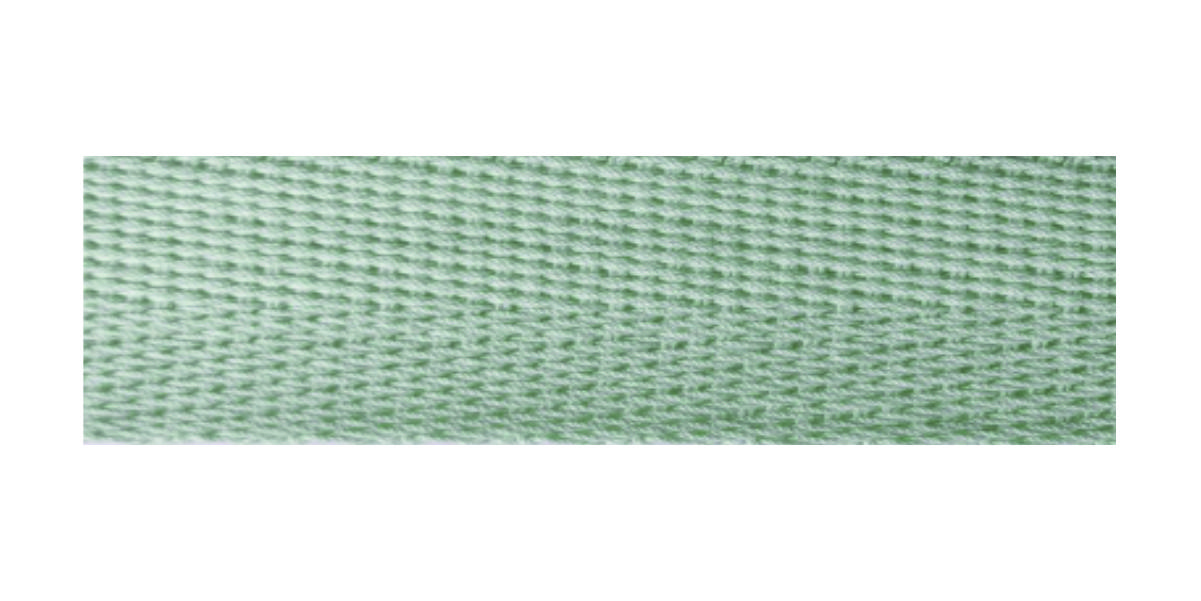

NWFS-PIA-C-9001
Webbing, cotton, 1 inch wide
PIA-W-5665 Type II
Herringbone 2x2 Twill Weave
Thickness: max. 0.040-0.050 inch
Tensile strength: min. 575 lbs
Shade: Natural
$ 0.450 per yard
Get this deal

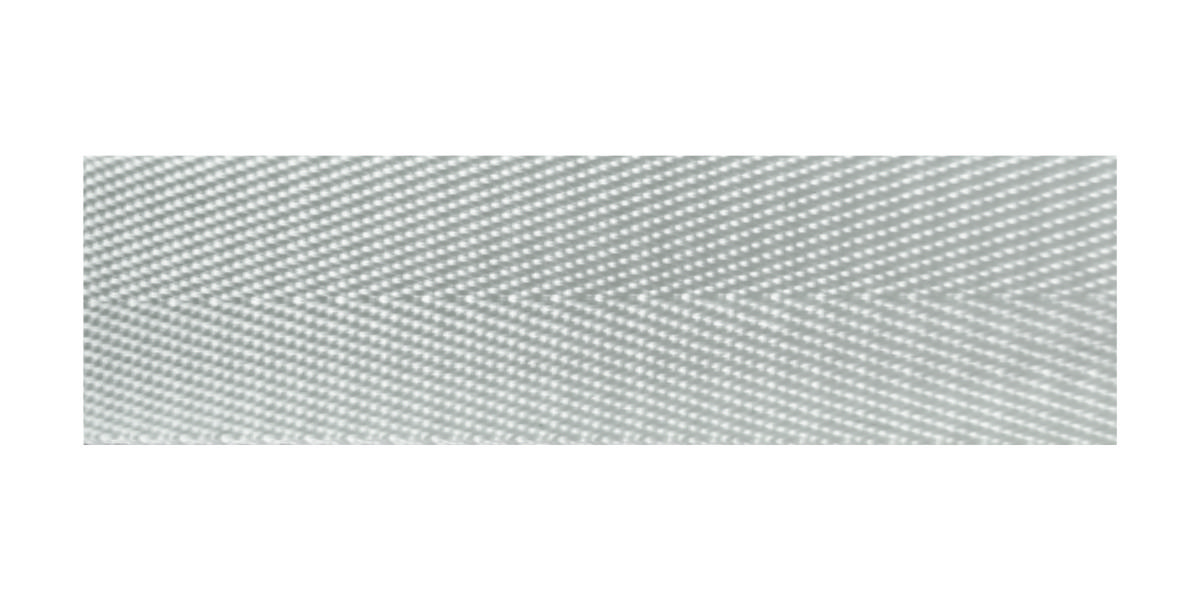

NWFS-PIA-C-9002
Webbing, cotton, 1-1/4 inches wide
PIA-W-5665 Type III
Herringbone 2x2 Twill Weave
Thickness: 0.040-0.050 inch
Tensile strength: min. 750 lbs
Shade: Natural
Request a quote
Get this deal

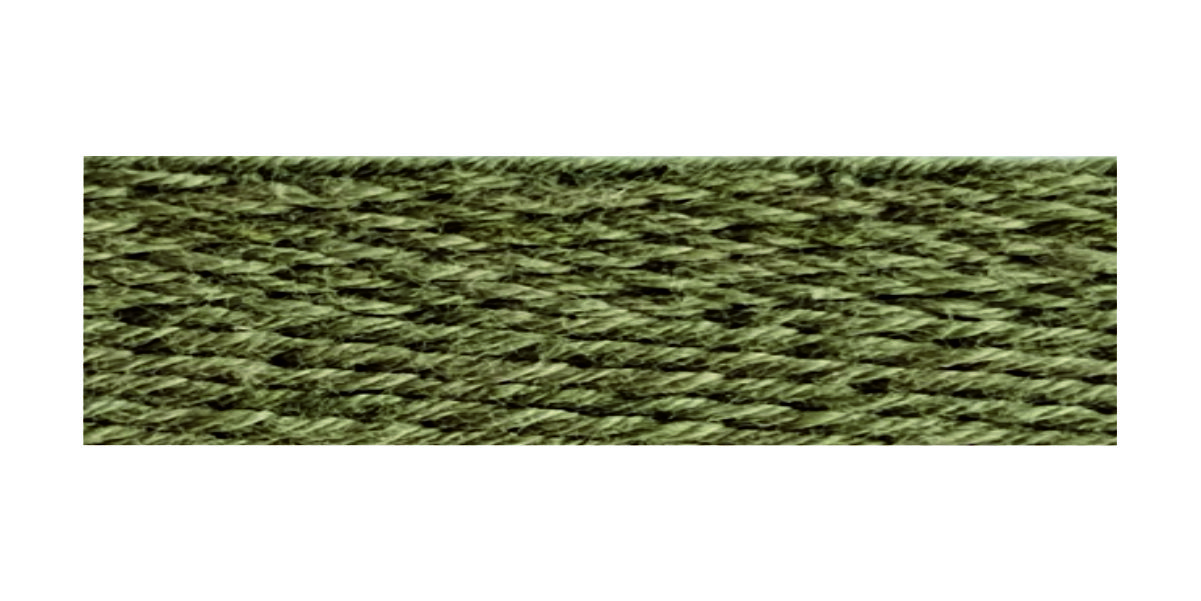

NWFS-PIA-C-9007
Webbing, cotton, 1-3/4 inches wide
PIA-W-5665 Type VIII
Herringbone 2x2 Twill Weave
Thickness: 0.070-0.095 inch
Tensile strength: min. 2700 lbs
Shade: Olive Green
Request a quote
Contact Us

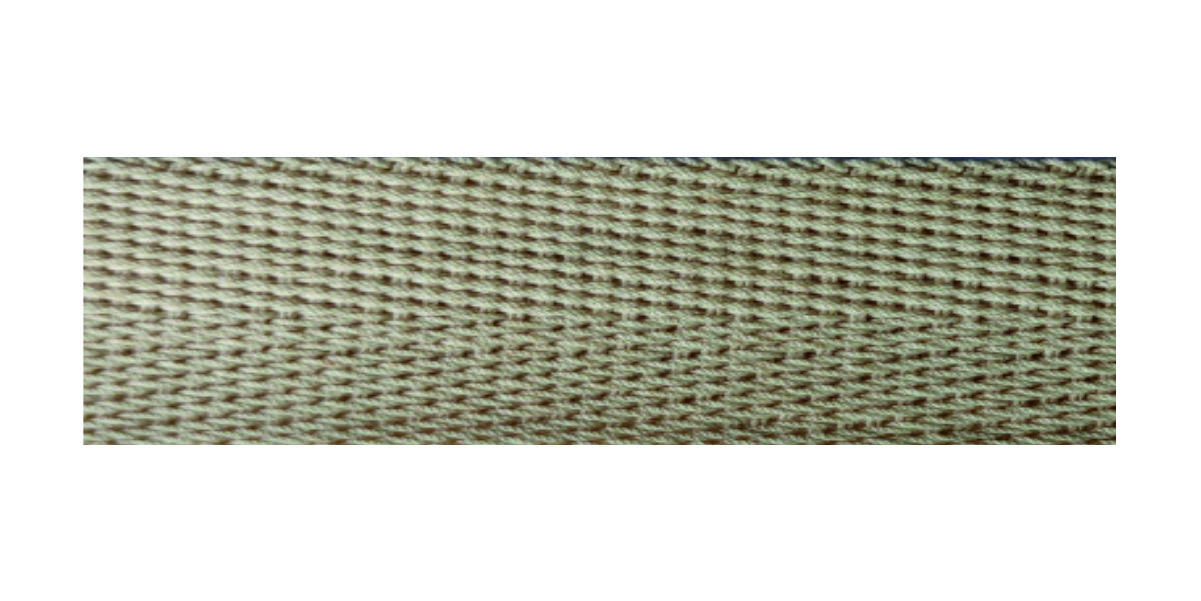

NWFS-PIA-C-9014
Webbing, cotton, 1 inch wide
PIA-W-5665 Type XVIII
Herringbone Twill Weav
Thickness: 0.075-0.095 inch
Tensile strength: min. 900 lbs
Shade: Natural
Request a quote
Contact Us
NWFS-PIA-C-9042
Webbing, cotton, elastic, 1 inch wide
PIA-W-5664 Type I
Thickness: 0.016-0.046 inch
Load Range: 3.00 - 5.50 lbs
(to produce 50% elongation)
Shade: Olive Drab
Request a quote
Contact Us
